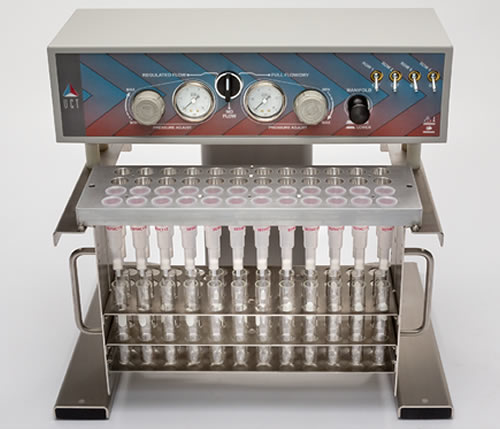

Positive Pressure Manifold 2.0
48 Position Rugged Performance with Streamlined Design
UCT’s all new 48 position positive pressure manifold features the same rugged performance end-users have grown to expect, but now boasts a streamlined, compact footprint. Key features include: easy manifold setup with a modern design and small footprint, user friendly and easy to read/adjust pressure regulators, configurable collection racks (Column and Sample) allowing for a variety of SPE column types to be used (1mL, 3mL, 6mL, 10mL or 15mL). and uniform pressure from port to port regardless of batch size in sample tray ensuring for an overall efficient extraction. In addition, the new units feature an all-in-one frit plate with removable frits and o-rings in the event an isolated port becomes obstructed. This allows for isolated repairs on the units extending the overall usage.
-

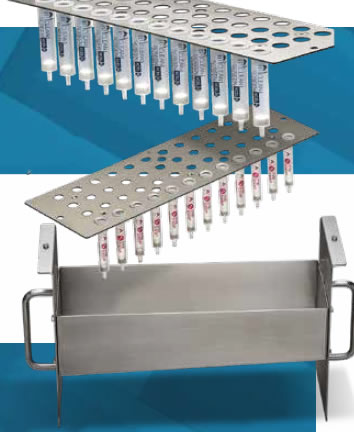

10mL/15mL SPE Column Rack
-
Collection Rack for 13/16mm Culture Tubes
-
Waste Container with Stopcock for Drainage

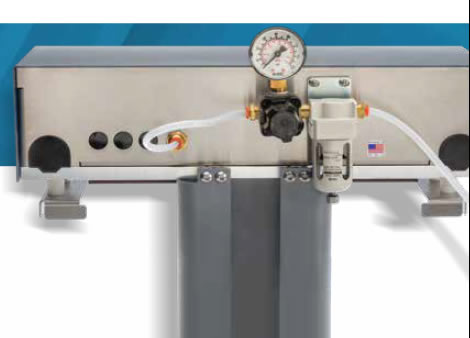

Easy manifold set-up
Simply attach the provided air regulator/
lter assembly and quick connect an air
source to instantly begin testing.
Modern Design, Small Footprint
Eye-catching faceplate graphics surround the manifold
controls which are housed in a sleek/compact frame.
The manifold is a small, light, mobile instrument which
can be set up almost anywhere with an air or nitrogen
gas source.

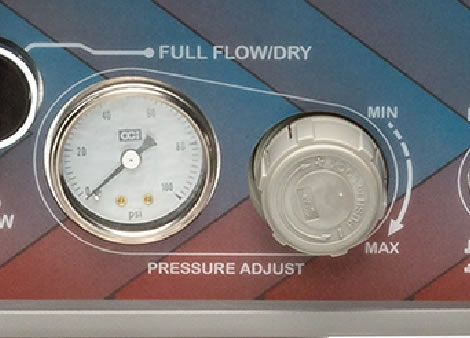

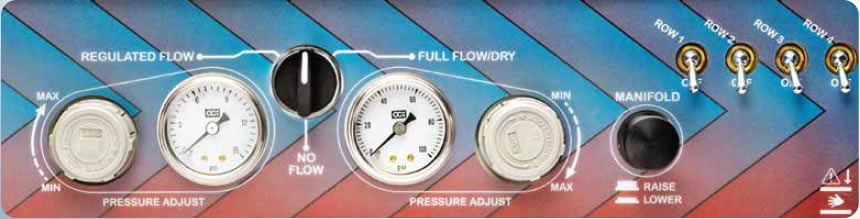

User Friendly
Easy to read /adjust pressure regulators.
Selection and monitoring of optimal test pressures are fast , easy to read and reliable, allowing users to set di erent pressures for extraction and column drying.
Configurable
Collection Racks (Column and Sample)
Adaptor plates are easily attached or removed, allowing for a variety of columns (1mL, 3mL, 6mL, 10mL or 15mL) and sample collection tube sizes. 10ml/15mL column plate included with standard system. Additional adaptor plates available for separate purchase.
Convenient
Gas Supply Options/Waste Removal
The manifold can accept either N2 or compressed air, regulated to 80-120 psi and ltered to 10μm. A waste valve with a stopcock for opening/closing is located at the base of the waste reservoir and can be connected to any waste collection container for easy disposal.

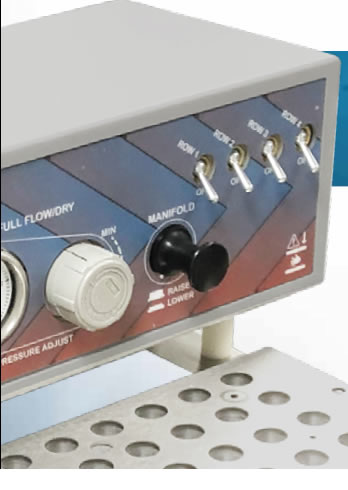

Single Switch
Adjustment Process
Simply ip a switch to select or deselect a sample row or to raise or lower sample racks. Conserve compressed air or nitrogen usage and create airtight SPE column to gasket seal.
Uniform Pressure
From Port to Port
Regardless of batch size in sample tray, each of the individual 48 positions will receive uniformed pressure during drying process, ensuring for an overall e cient extraction.
Want to know more
If you want to find out more about the UCT PPM 2.0 or to book a demo, please contact Chromatography Direct.
